Aluminum Spacer Bar Production Line

Contact Us

Product features

Aluminum spacer bar production line is to produce high-quality High Frequency Welding Aluminum spacer bar of different models.
The aluminium bar dedicated welding machine produced by us is Anhydrous welding which is the most advanced technology all around the world, the machine includes the following parts:  uncoiler, mould, automatic fixed length flying saw, automatic collecting & feeding platform、aluminum bar dedicated high frequency welding machine (Rectifier cabinet, Inverter cabinet, rectifier transformer, operating box)etc.  Automatic fixed length flying saw & automatic collecting & feeding platform

1234

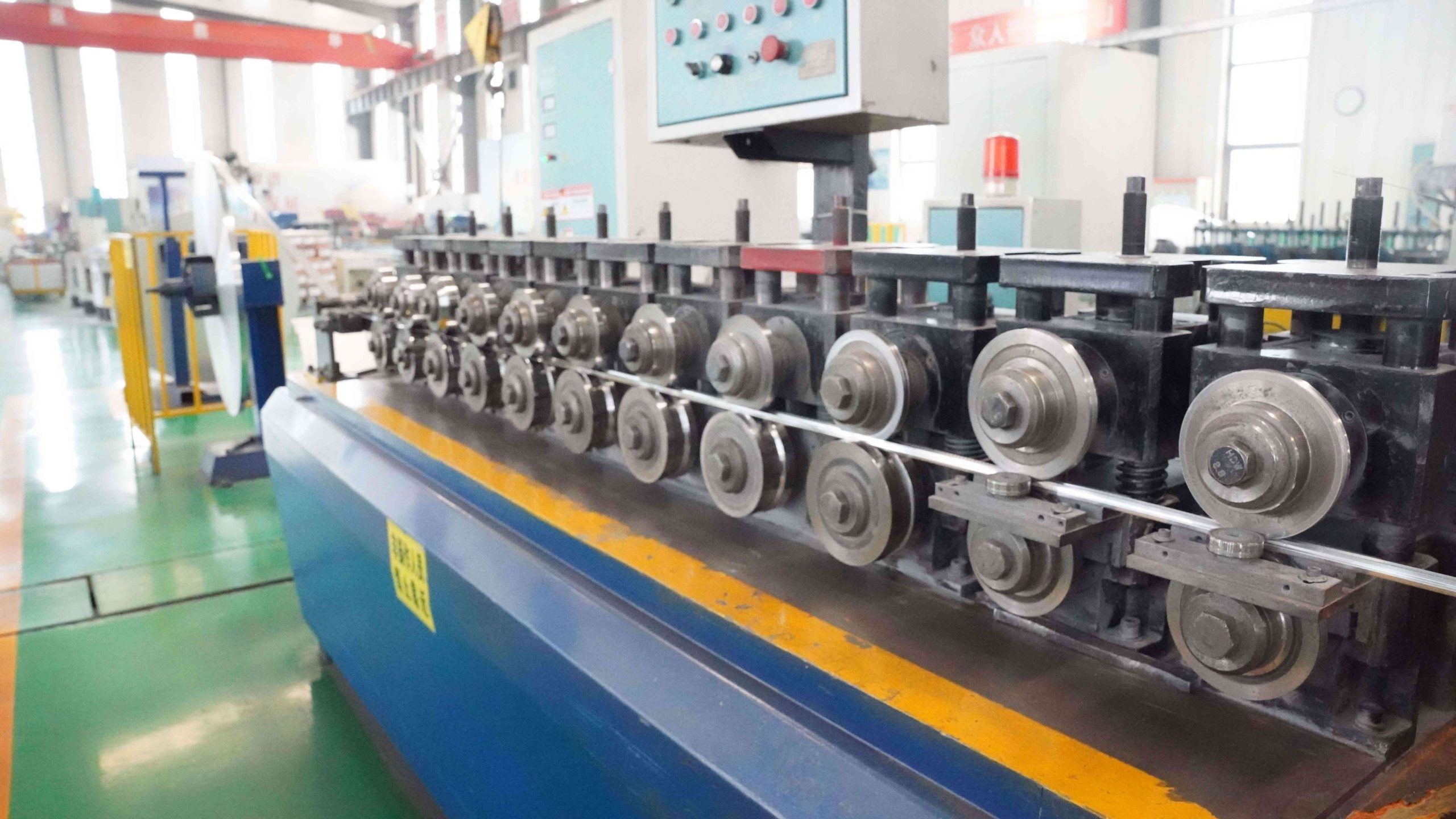

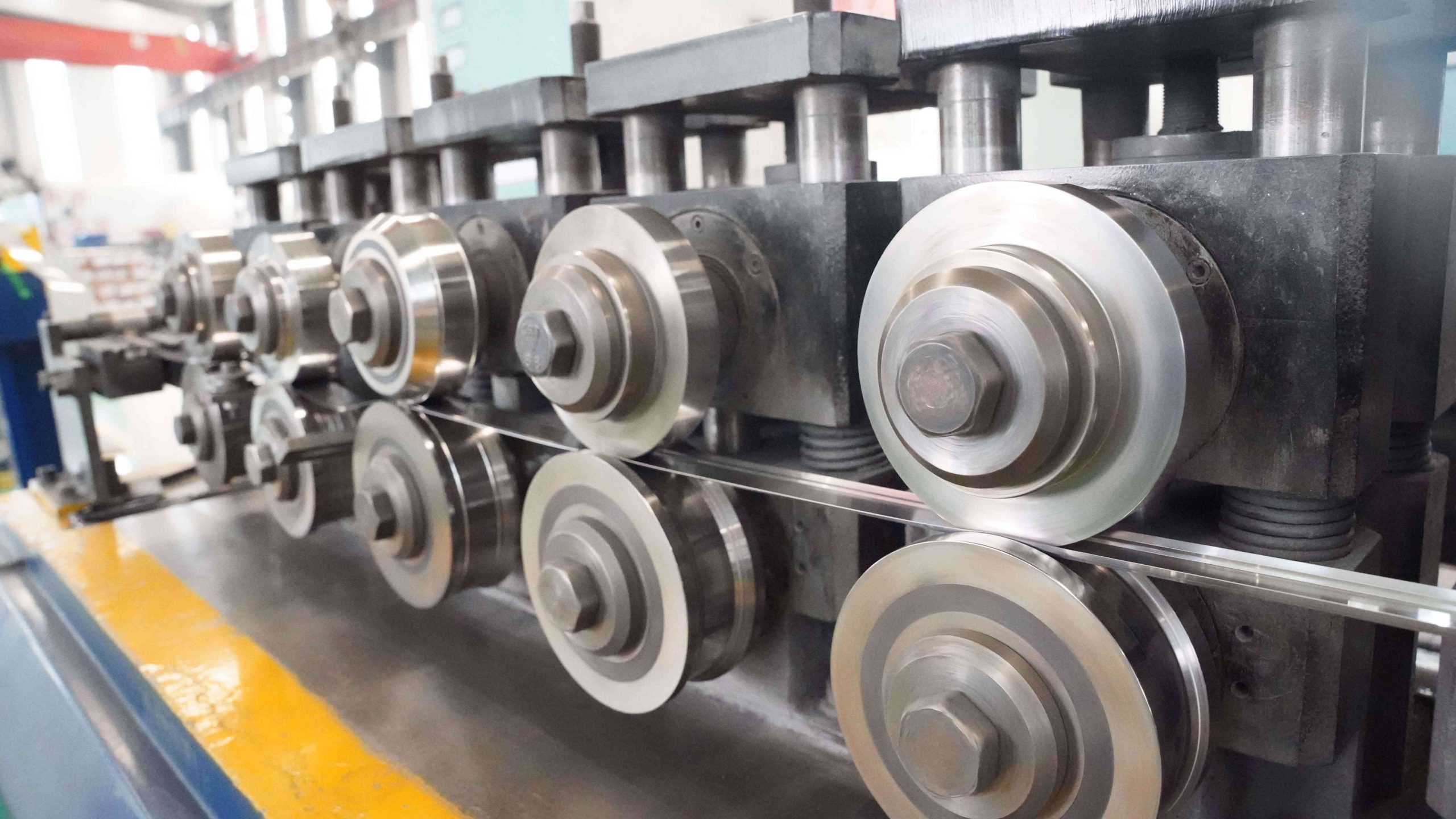

Uncoilerfeed guidingroll formingwelding device
5678
Scraping scar devicesizing deviccecorrection devicecutting system
9101112
cooling devicepurge systemout tablecorrection device

Technological process

Uncoiler -> feed guiding->roll forming->welding device->Scraping scar device->sizing devicce->correction device->flying cutting system->cooling device->purge system->out table​
0%

Main parameters for the machine

4.2.1 rolling material: Aluminum

4.2.2 forming type: the aluminum was rolled by rollers,the machine driving by gear box.

4.2.3 installed capacity:≤150KVA

4.2.4 driving way:  Servo synchronization transmission

4.2.5 forming speed: 30-150M/Min

Operation

—Extrusion device, free of adjustment ,no need to replace bearing

—aluminium bar can be packed directly

—small space requirement, no need drying space

—Labor cost saving(3 workers are saved compared with traditional line which needs extra one person collect and two persons lift material)

Final aluminum spacer bar specification and data

ModelWidth of sectionHeight of sectionLength
6mm5.5mm6.5mm5m
8mm7.5mm6.5mm5m,6m
9mm8.5mm6.5mm5m,6m
10mm9.5mm6.5mm5m,6m
12mm11.5mm6.5mm5m,6m
14mm13.5mm6.5mm5m,6m
15mm14.5mm6.5mm5m,6m
16mm15.5mm6.5mm5m,6m
18mm17.5mm6.5mm5m,6m
19mm18.5mm6.5mm5m,6m
20mm19.5mm6.5mm5m,6m
22mm21.5mm6.5mm5m,6m
24mm23.5mm6.5mm5m,6m
26mm25.5mm6.5mm5m,6m
29mm28.5mm6.5mm5m,6m
32mm31.5mm6.5mm5m,6m
